Creating Columns Using Grid Widgets
You will most likely need a page that has content separated into
columns. You don’t have to create the column layout on the page before adding
Content widgets, but it does help if you already have a design in mind.

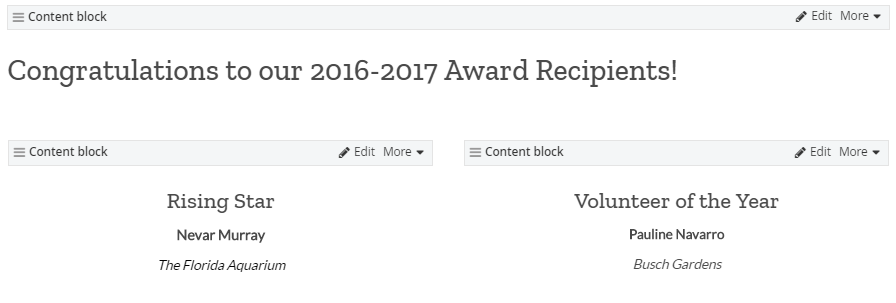

Here is an example of columns used on an Awards page:
As you can see, the award names and recipients are arranged in two
columns.
You can’t drop a Content block next to another Content block within the
same row, so you’ll have to divide the row into columns.
Columns are created in the Layout view of the page editor.
To create columns:
- Switch to Layout view by clicking the
blue “Layout” link in the top
right, above the Widget sidebar.
- You are now in the Layout view.
You’ll see the Content widgets have been replaced with Grid widgets.
- To divide Column 1 into two columns, drag and drop a “grid-offset-6+6” Grid widget into Column 1.
- Now, instead of just Column 1, you’ll see it’s been divided in to two
columns – Column 1 and Column 2.
- You can now switch back to Content view to drop widgets into the new columns.
- To delete a Grid widget, click More in the upper right corner of the widget, then
click Delete.
If you do delete a widget by mistake, you can always restore the page to the last time you published it or saved a draft.
You cannot rearrange columns (Grid widgets) in Content view, and you
cannot rearrange widgets in Layout view, but you can easily toggle back and
forth between the Content and Layout views while editing.
